Accessories

Description

Used in conjunction with 3/4″ pipes. The drive point provides a pointed end to help the pipe penetrate the ground and to keep soil and debris out of the pipe. Once the pipe is in place, it can be raised a few inches to drop the expendable drive point and allow the chemical grout to flow freely. Item #11302

Description

3/8″ & 3/4″ Soil Probes These strong, durable soil probes are constructed of high-strength stainless steel. Just screw them onto either 3/8″ or 3/4″ pipe and drive them into the soil with a pneumatic driver. The resin flows through the pipe and out of the holes drilled in the diffuser section of the probe. Item #11331, 11327

Description

EZ Couplers (Reducer, Union, EZ Tube, Zerk Adaptor) Connects the 1/4″ static mixer from our Quick Mix cartridges directly to our injection ports (or tubing from hard to reach places). The connection reduces resin drip and allows the operator to concentrate on the injection process rather than on trying to keep the static mixer in the port. Reducer- Item #11320, Union- Item #11323, EZ Tube – Item #11322, Zerk Adaptor – Item #11319

Quick Mix Reducer Ball Valve Connects the 1/4″ static mixer from our Quick Mix cartridges directly to our low pressure injection ports. The ball valve can be closed to reduce waste when moving from port to port. Item #11321

1/4″ x 32 Element Mixers (for injector resins) 10 per pack Packaged standard with Prime Re 1000, 1100, 1200, 1900; Prime Flex 900 XLV, 920, and Hydro Gel SX Item #11314

1/2″ Static Mixer (For Epoxy Gels) 10 per pack Packaged standard with Joint Shield 5200 and all Prime Gel epoxy adhesives Item #11316

Static Mixer Retainer Nut Item #11916

High Pressure Coupler These couplers are perfectly matched to provide the tightest seals when used with our mechanical packers or Bang-In Ports. Item #11913

Description

Prime Conduit Seal Kit is a quick and convenient method of stopping water seepage around pipe penetrations or around cable in conduit. Kit includes 8 pair of rubber gloves, 1 liter of Prime Flex 900 XLV in a measuring bottle, 8 bags of dry oakum (12″ strip in each bag), one 2-gallon plastic water bucket, and directions for completing repair. Item #12528

Description

The DM500 is a compact manifold that delivers two independent streams of material into a 1/2” static mixer before entering a single material hose. This allows the operator to move from one location to the next without having to lug around multiple hoses. The DM500 has an integrated flush system which allows you to flush both the manifold and attached dispense hose and valve/gun. It can be used to mix most of our slow set polyurethanes, polyureas and epoxies. Item #11385

Description

Eco Flush is a non-flammable solvent great for cleaning equipment and flushing out pump cylinders, lines, and hoses after Prime Flex injection. The special blend of solvents is designed for flushing and cleaning Prime Flex polyurethane and Prime Rez epoxy injection resins out of injection pumps and hoses. Item #11258

Description

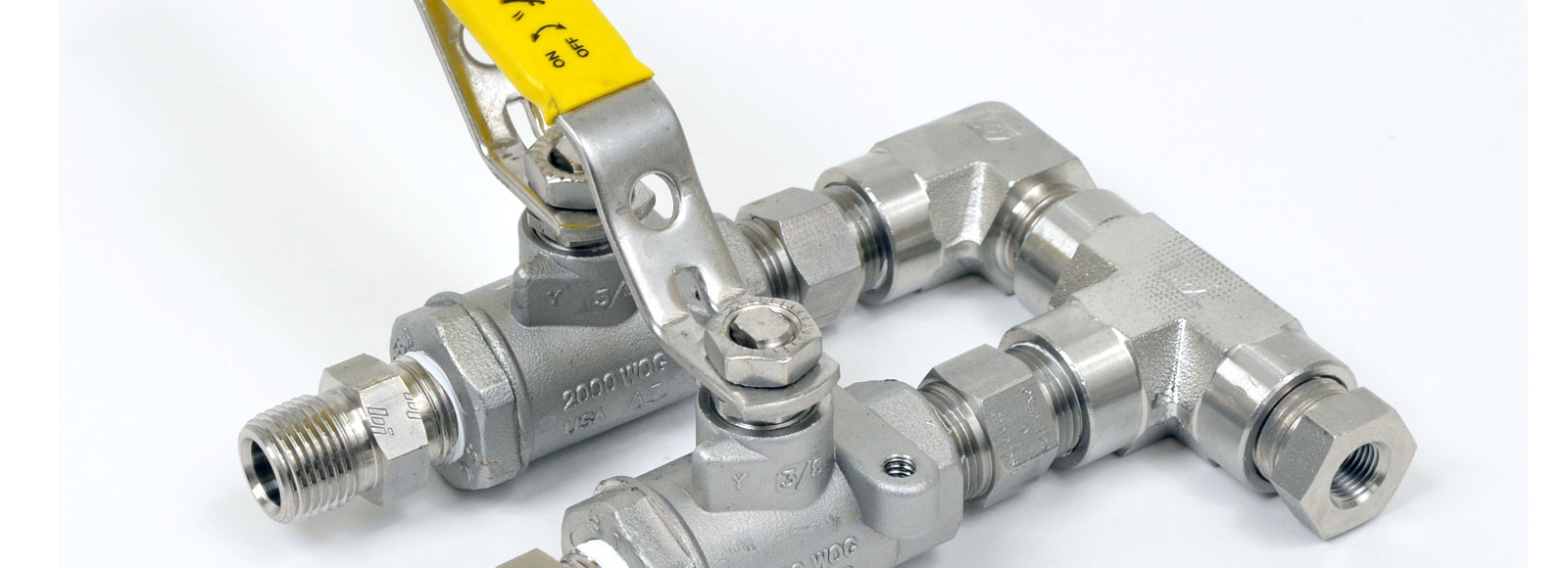

The F Valve assembly is a low cost valve assembly that was designed to “twin stream” Prime Flex polyurethanes with water. The mix ratio is controlled by the operator using the two on/off valves that come with the assembly. This is especially useful for injecting Hydro Gel into leaking manholes. High pressure valve. 2000 psi and under. Use with grout needle kit or wall stinger nozzle. Available in stainless or carbon steel.

Description

If you are doing high-pressure injection, this inexpensive tool is a must. Use it to reach the back of your drilled holes and flush out concrete dust so that it doesn’t contaminate the crack during injection. Item #11288

Description

This 1/4” stainless steel grout needle is 12” long. Use it to penetrate rubber boots for leak sealing at the manhole-pipe connection. It is also good for injecting Prime Flex polyurethane behind an activated oakum seal. We also offer a model that attaches directly to the mix nozzle of our Quick Mix and Single Shot cartridges. Custom lengths available upon request. Needle- Item #11289, Quick Mix Kit - Item #11294

Description

This is the only accessory required to turn an airless sprayer into an injection pump. It allows the operator control of resin flow at the point of injection. High Pressure valve. Up to 4,500 psi. Item #685-H

Description

3/8″ Bang-In Ports- Item #11912 Bang-in ports are easier to install, cost less, and for many applications, are just as effective as more expensive packers. Holds pressure to 3,000 psi. Not for use in weak, deteriorated concrete

1/2" & 5/8" Mechanical Packers– Item #11276 (1/2") and #11282 (5/8") High pressure injection ports for epoxy, acrylate and polyurethane injection. These are longer, at 4.25 and 4.5 inches long to tip of zerk, respectfully. Also capable of pressures up to 3,000 psi.

Description

Kick Fast is the catalyst needed when a very fast set time is required when using Prime Resins’ hydrophobic polyurethane injection resins. It is used at 10% concentration to ensure a very fast set time. Extremely cold water or high hydrostatic pressure are two examples of situations where Kick Fast is the appropriate choice.

Description

Plastic Surface Mount Ports – Item #11283 with Attached Plastic Cap Surface mount port. Large opening for static mixers. Low pressure only. 100 / bag (includes cap). Application: For use with 1/4″ or 1/2″ static mixers and Prime Rez 1600 injection gel.

Plastic Surface Mount Ports – Item #11284 Y-shaped base, Low pressure only. Will accept cartridge systems and other pressure injection equipment. 100 / bag. Application: Epoxy injection. (Requires #11287).

Socket Mount Ports – Item #11286 For 1/2″ holes. Low pressure only. Will accept cartridge systems and other pressure injection equipment. 100 / bag. Application: Injection of chemical grouts or epoxy resins for either direct or offset injection. (Requires #11287).

1/4″ Caps for Plastic Ports – Item #11287 100 / bag. Application: Required for use with #11284 and #11286. Used to close port after injection.

Description

PR11 TEA, a Triethanolamine (TEA) Activator, is a catalyst to be used with PR10 ACLM and SoiLok acrylamide products from Prime Resins as an activator for reaction.

Description

PR12 APSF is a catalyst to be used with PR10 ACLM acrylamide. It is a white crystalline solid and used as a polymerization initiator. Ammonium persulfate is a powder that is a required grout component. PR12 APSF decomposes over time as it is a strong oxidizing material

Description

PR17 LYTX is a water-based additive to strengthen gel and reduce shrinkage. With hydrophilic polyurethane grouts, PR17 LYTX is added to the mix water at ratios from 6:1 to 10:1 (water : PR17 LYTX). With acrylamide and acrylate grouts, replace up to 3 gallons mix water with PR17 LYTX. Seals leaks in sanitary and storm water mainlines, pipe penetrations, laterals, lift stations and manholes. Stops leaks in tunnels and mines. Offers soil stabilization for slough control, slope control, erosion mitigation and other geotechnical applications.

Description

Our proprietary catalyst used to adjust the reaction time of Prime Resins’ hydrophobic polyurethane injection resins, including Prime Flex 910, 920 and 940. It is used in a concentration between 1/2% to 10%, depending on the desired reaction time.

Description

Prime Plug is a rapid-setting concrete patching material designed to cut off water leaking through concrete or masonry surfaces. Stops water flow through concrete or masonry. Used in conjunction with Prime Flex products for a permanent solution. Typical areas of use include manholes, pipes, tanks, tunnels, utility vaults, elevator pits and dams. Exhibits excellent bond strengths and high early strengths. Available in three different set times. Stops gushing leaks and is non-shrink. Set times are 1-2 minutes for Prime Plug 1 (red top), 3-5 minutes for Prime Plug 2 (blue top), and 8-13 minutes for Prime Plug 3 (blue top).

Description

Cleans cured grout from injection equipment. It is non-chlorinated, nonflammable (by U.S. DOT definition), non-carcinogenic, and non-ozone depleting solvent. Can be used for extended periods, tolerate high resin loadings, and will reduce disposal costs. It is also recyclable via vacuum distillation.

Description

Dry oakum is used to form surface seals and helps control gushing leaks during injection. It can also be used in combination with Prime Flex 900 XLV, Prime Flex 920 and Hydro Gel for the Activated Oakum method of sealing joints and pipe penetrations. Prime Resins oakum comes in 12 lb. boxes. The oakum can be unraveled to produce additional feet of smaller strands. Item #12451

Description

As you inject chemical grout through pipes, you may need assistance in raising a pipe out of the ground. Our pipe jack has been modified to maximize compatibility with this application. Item #11313

Description

This 1/4″ stainless steel grout needle is 12″ long. Use it to penetrate rubber boot seals for leak sealing at the manhole-pipe connection. It is also good for injecting Prime Flex polyurethane behind an activated oakum seal. We also offer a model that attaches directly to the mix nozzle of our Quick Mix and Single Shot cartridges. Other lengths available upon request. Needle – Item #11289, Quick Mix Kit – Item #11294

Description

StainShield concrete protector shields surfaces from resin and epoxy stains. Use this concentrate diluted with water to reduce or eliminate the discoloration from, polyurethane lifting foams, polyurethane or epoxy grouts, and polyurea or epoxy joint sealers. These foams, grouts and sealers normally leave a discolored area on the surface of contacted concrete. This discoloration is exposed when removing inadvertent overflow from cracks, joints or drilled holes. This discoloration is often unsightly in an otherwise flawless project. Recommended as a protective concrete stain barrier when using polyurethane, epoxy or polyurea systems. Aids in overfill cleanup by allowing easier removal of excess material. Biodegradable with low toxicity.

Description

The wall stinger nozzle attachment screws directly on top of the “F” Valve Assembly. It allows injection of chemical grout directly through a concrete structure without the need for an injection port. This is ideal for grouting behind a manhole or a below-grade wall. Not recommended for high-pressure crack injection. Item #11333
